ImPulse 9 Motor

This is a 9.25" diameter, series wound DC motor with a double ended shaft and is pre-drilled to allow for fixed brush timing advance in either the Neutral, CWDE or CCWDE(default) position. Our ImPulse 9 Motor shares many of the internal components of our WarP 9 Motor, but has the mounting pattern and pilot to match 8" motors (Model 00-08259 & Model 00-08269). The Model 00-08249 is not a normally stocked item!. Model 00-08269 is the single ended shaft version of this motor, and Model 00-08259 is the double-ended shaft version. Model 00-08249 is only available as a double ended shaft.



The ImPulse 9 Motors have almost 30% greater brush area than 8" motors, larger bearings, and more commutator area. The commutator bars are more securely attached to the arbor, so they will be less likely to lift. The drive shaft is bored for a pilot bearing and drilled & tapped for a 5/16 - 18 bolt. The tail shaft also has a 1/4 - 20 bolt hole to mount tach sensors or secure couplers and accessories. Again, we have duplicated the ADC 8" mounting bolt pattern allowing clients to use preexisting mounting adapters. Class "H" insulation is used throughout the motor. The drive shaft and tail shaft have standard keyways cut into them.



Retail Price List



Delivery Time: From Stock.



TOP

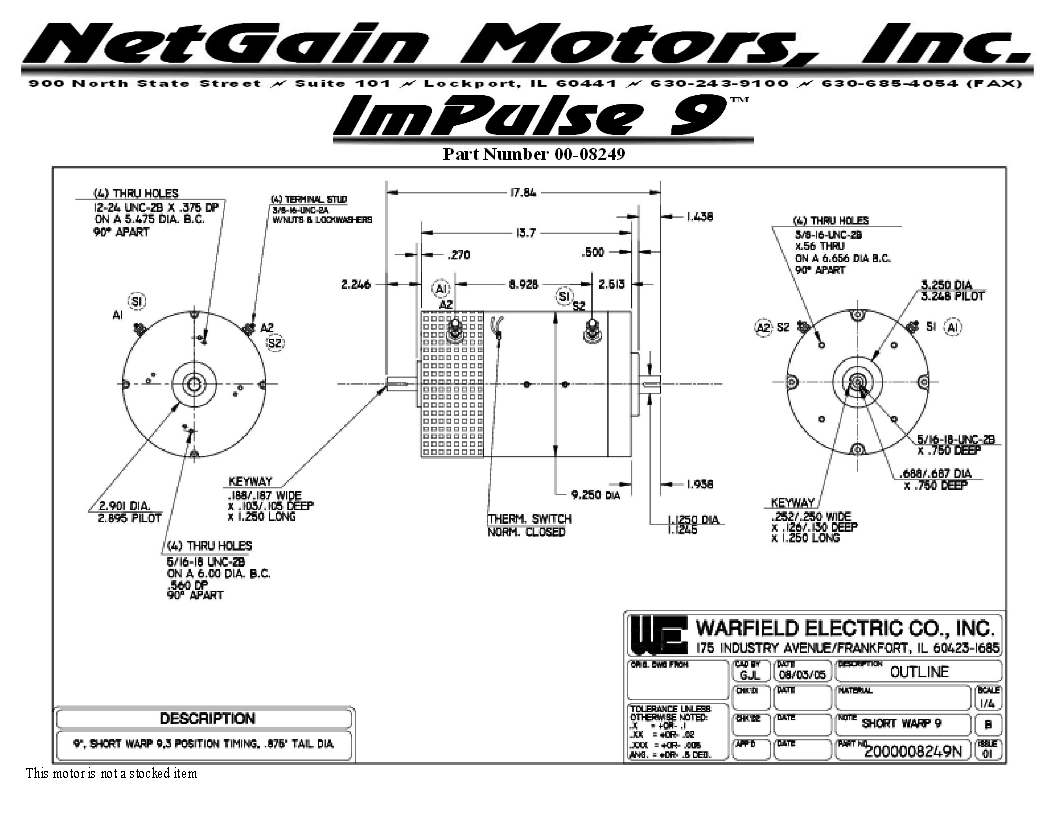

DOWNLOAD CAD DRAWINGS



For further information, or to purchase a motor Please contact one of our Authorized Distributors or Authorized Dealers.
