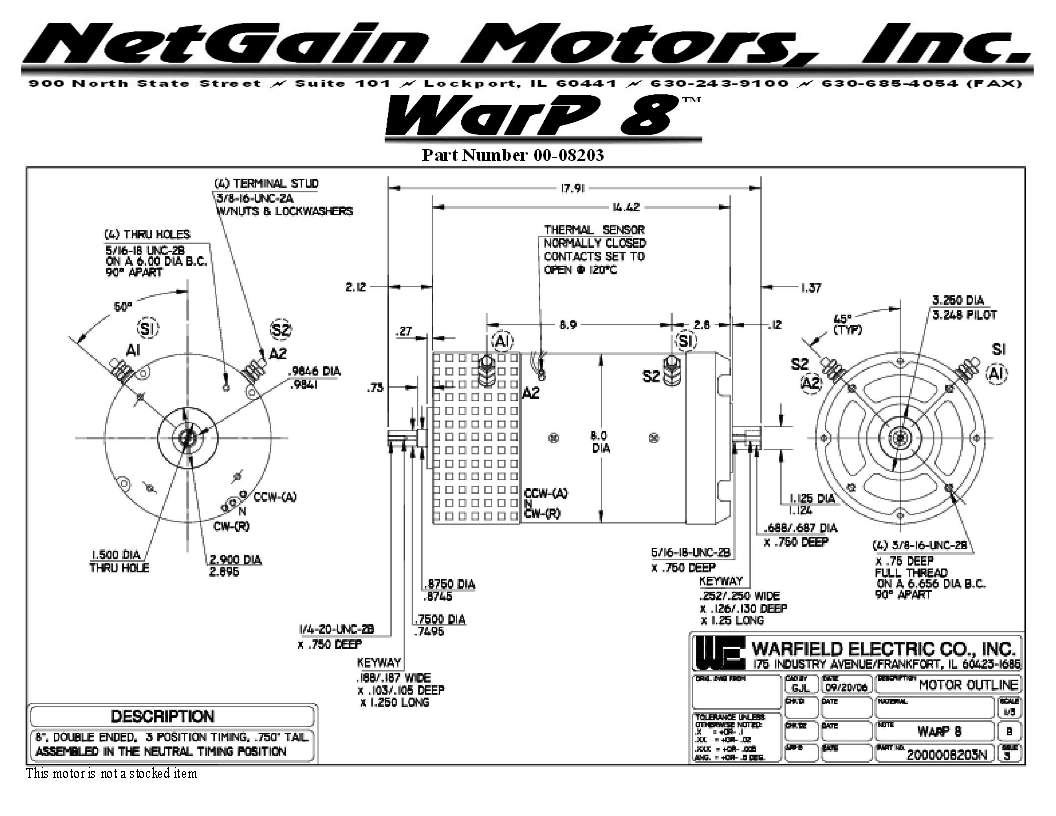

WarP 8 Motor (replaced with ImPulse 8 and ImPulse 9)

The WarP 8 motor is basically a twin to the ADC 8" motor, but at a better price. As a convenience, we have even duplicated the mounting bolt pattern to allow our clients to utilize existing mounting plate adapters.



The WarP 8 motor's basic parameters: It is an 8" diameter series wound DC motor with a double ended shaft. The motor utilizes large style comm's and brushes. The comm's are key-locked onto the drive shaft -- reducing the likelihood of lifting any commutator bars. Class "H" insulation is used throughout the motor. The drive shaft and tail shaft have standard keyways cut into them. The drive shaft comes with a pilot bearing hole and a 5/16 - 18 mounting hole.



"White Zombie" (driven by John Wayland) used two WarP 8 motors. This car is the world's quickest and fastest "Street Legal Electric Vehicle".



Retail Price List



Delivery Time: From Stock - replaced with the ImPulse 9 and ImPulse 8.



TOP
DOWNLOAD CAD DRAWINGS

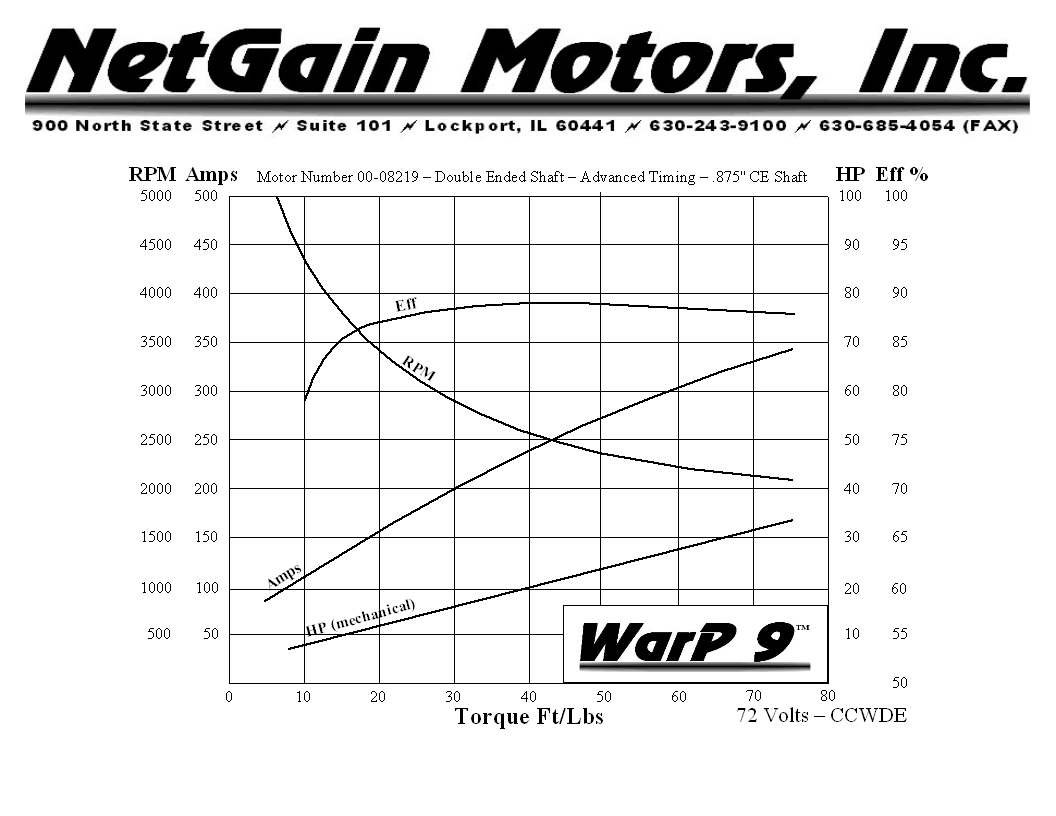

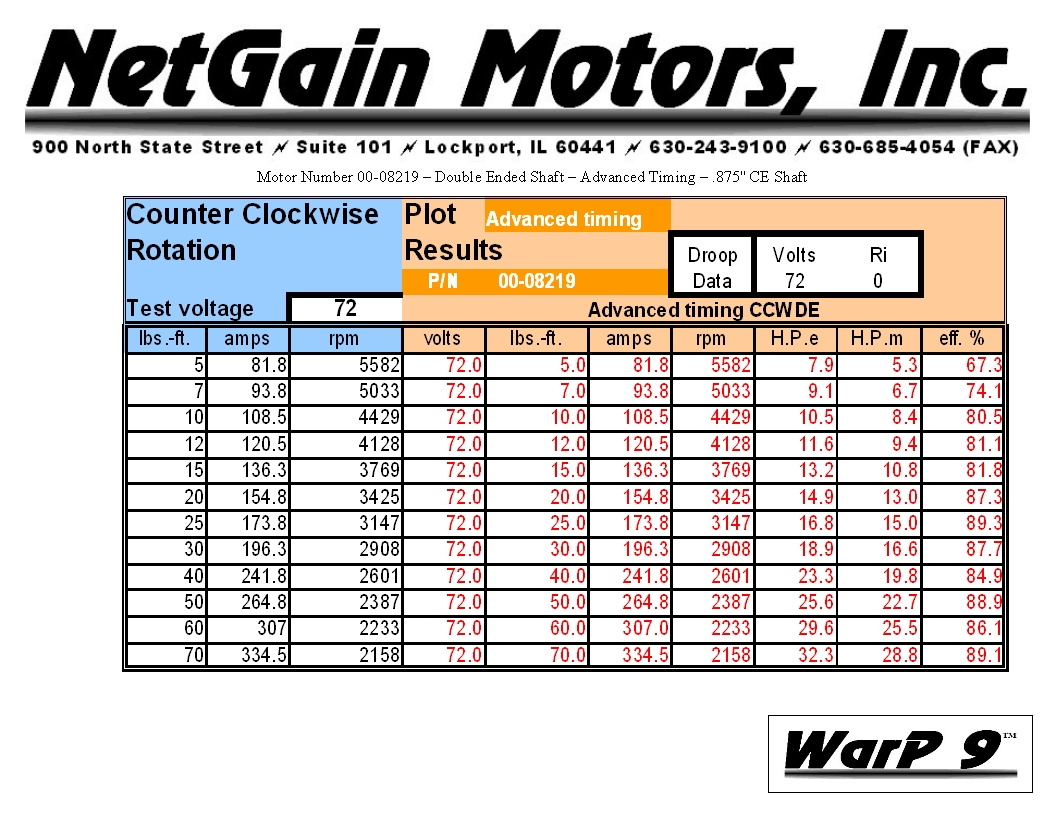

WarP 9 Motor

It is a 9.25" diameter, series wound DC motor with a double ended shaft. Our WarP 9 motor is similar to the ADC 9" motor, but with several improvements. Of the most notable changes, we have a larger com and utilize the large style brushes.



The com bars are more securely attached to the arbor, so they will be less likely to lift. The drive shaft is bored for a pilot bearing and drilled & tapped for a 5/16 - 18 bolt. The tail shaft also has a 1/4 - 20 bolt hole to mount tach sensors or secure couplers and accessories. Again, we have duplicated the ADC 9" mounting bolt pattern allowing clients to use preexisting mounting adapters. Class "H" insulation is used throughout the motor. The drive shaft and tail shaft have standard keyways cut into them. This motor is also available at a better price point to end users.



Retail Price List



Delivery Time: From Stock.



TOP
DOWNLOAD CAD DRAWINGS

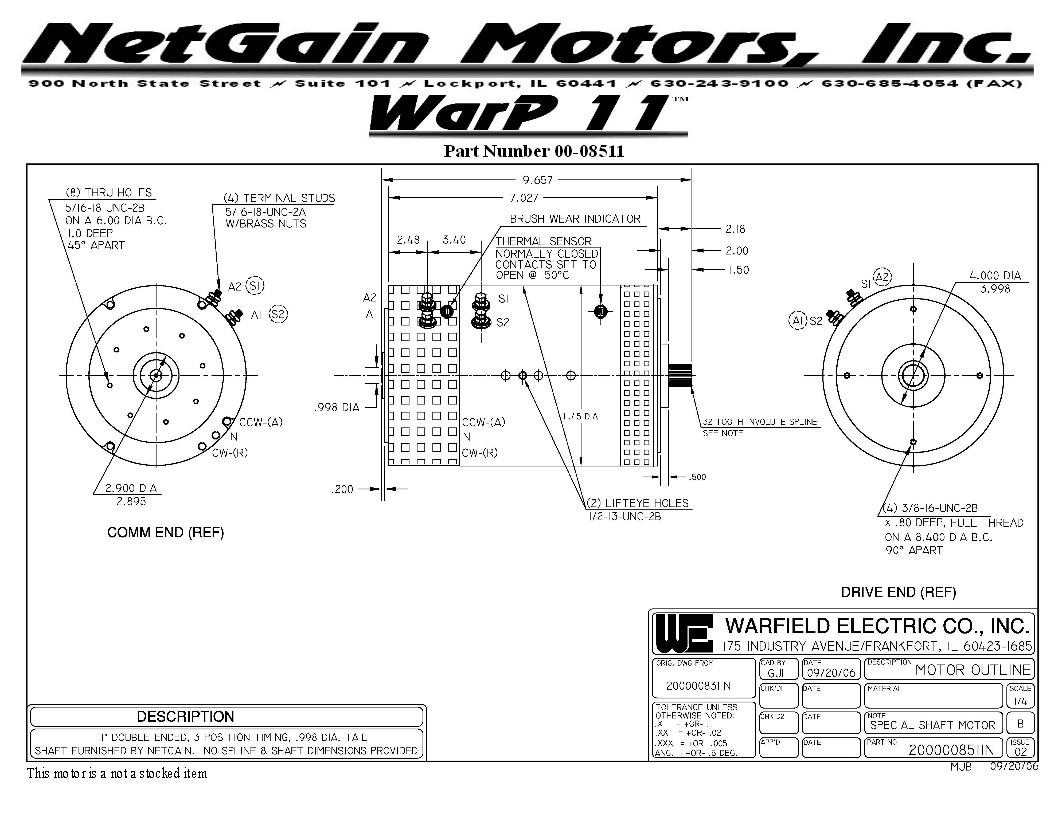

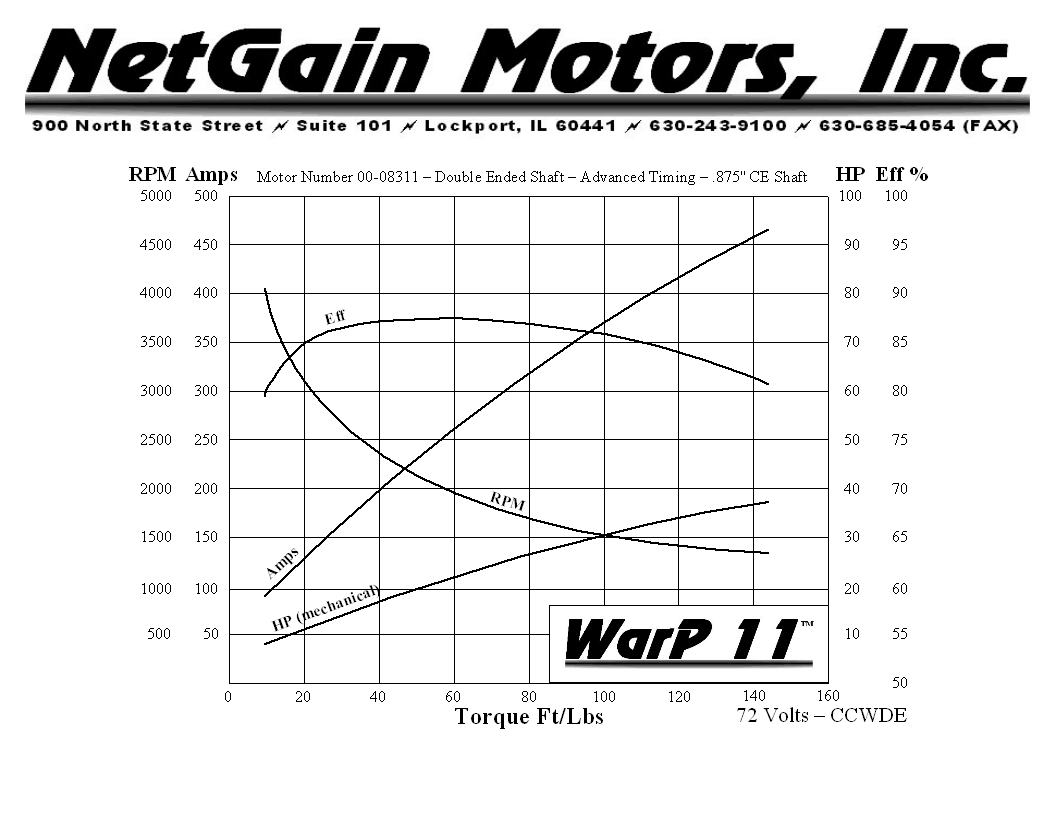

WarP 11 Motor

It is a 11.45" diameter, series wound DC motor with a double ended shaft. Our WarP 11 motor  comes set with advanced timing CCWDE. Of the most notable changes, we have a very large com and utilize the large style, very high quality brushes.



The com bars are more securely attached to the arbor, so they will be less likely to lift. The drive shaft is bored for a pilot bearing and drilled & tapped for a 5/16 - 18 bolt. The tail shaft also has a 1/4 - 20 bolt hole to mount tach sensors or secure couplers and accessories. Again, we have duplicated the ADC 9" mounting bolt pattern allowing clients to use preexisting mounting adapters. Class "H" insulation is used throughout the motor. The drive shaft and tail shaft have standard keyways cut into them. This motor is also available at a better price point to end users.



Retail Price List



Delivery Time: From Stock.



TOP
DOWNLOAD CAD DRAWINGS

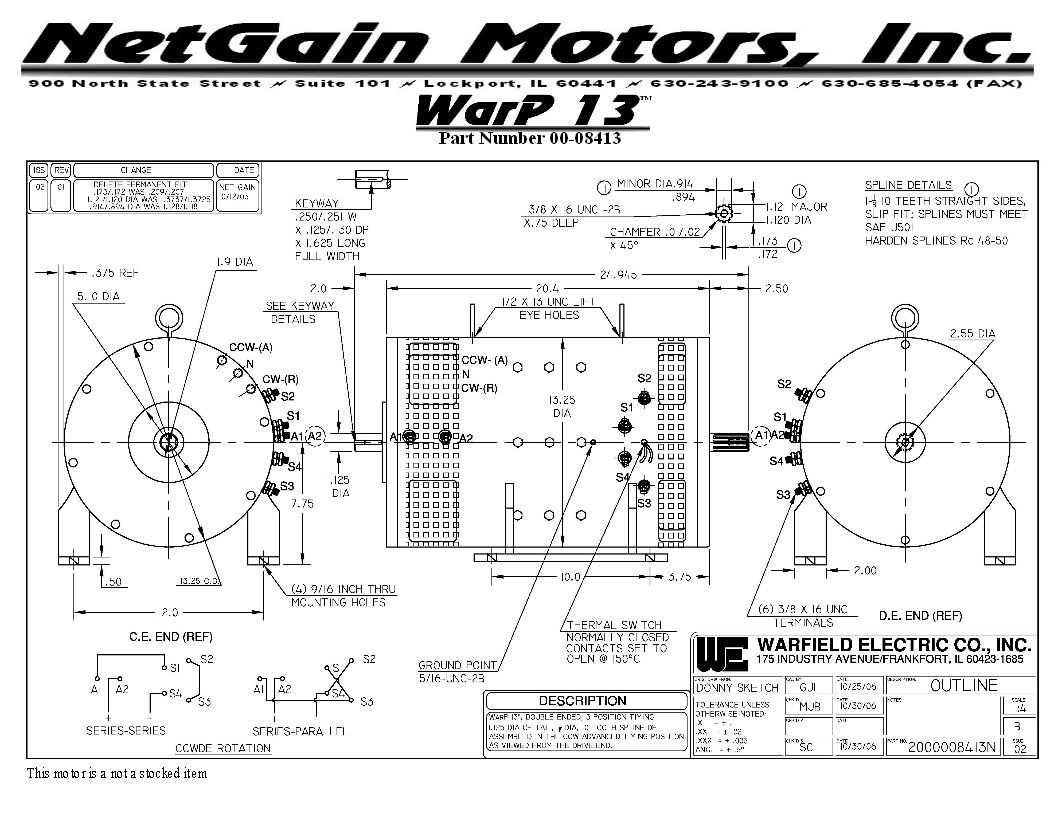

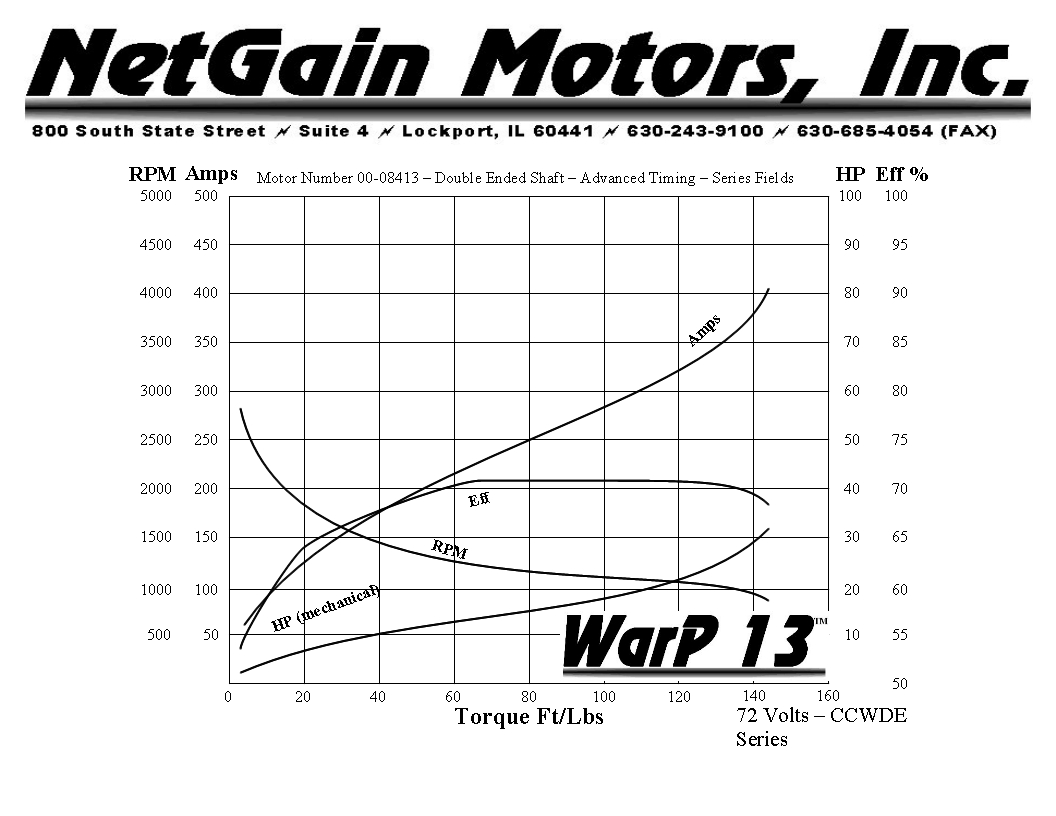

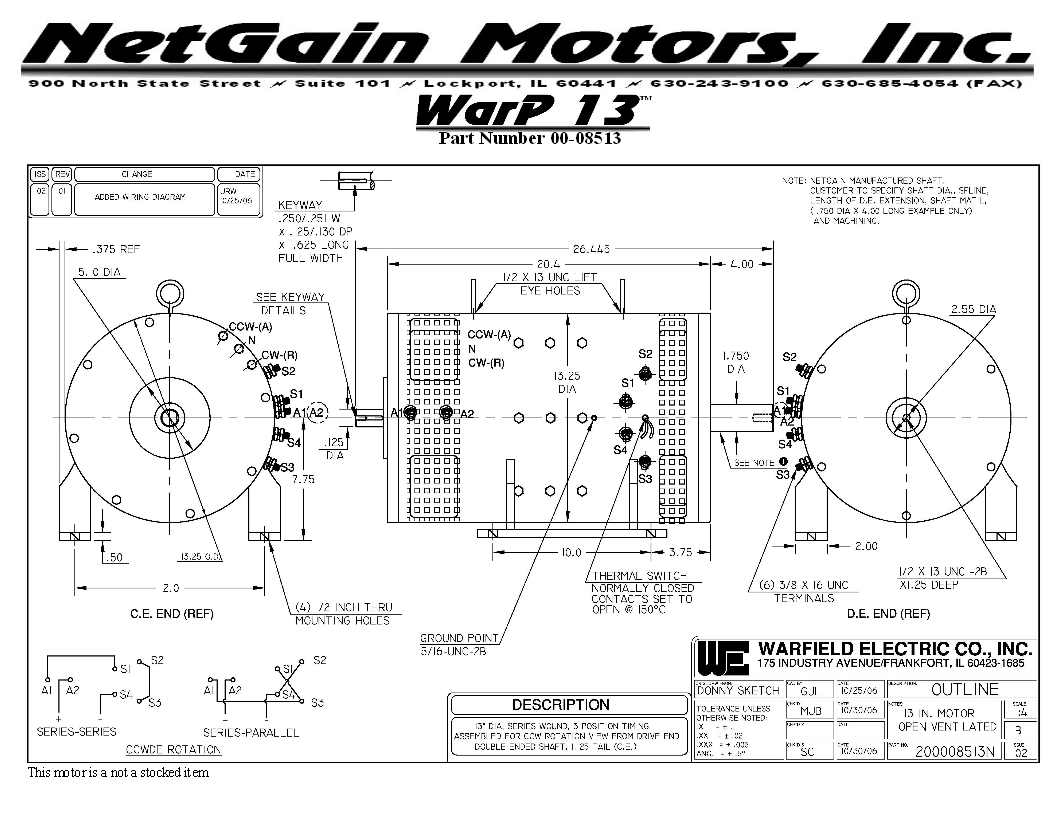

WarP 13 Motor

This is a 13.25" diameter, series wound DC motor with a double ended shaft. Our WarP 13 motor may be customized to a large extent by the customer.  This motor can have its fields  switched from serial to parallel!  The engineers at Warfield Electric said: "This motor is Torque City" when it was dyno tested!



The com bars are more securely attached to the arbor, so they will be less likely to lift. The drive shaft is bored for a pilot bearing and drilled & tapped for a 1/2 - 13 bolt. The tail shaft also has a 1/4 - 20 bolt hole to mount tach sensors or secure couplers and accessories. This motor is a "foot-mount" and should not be considered for face mounting due to its weight. Class "H" insulation is used throughout the motor. The drive shaft and tail shaft may be specially designed or use standard keyways or splines.



Retail Price List



Delivery Time: Special Order (generally 12-16 weeks after final approval of engineering).



For further information, or to purchase a motor Please contact one of our Authorized Distributors or Authorized Dealers.
