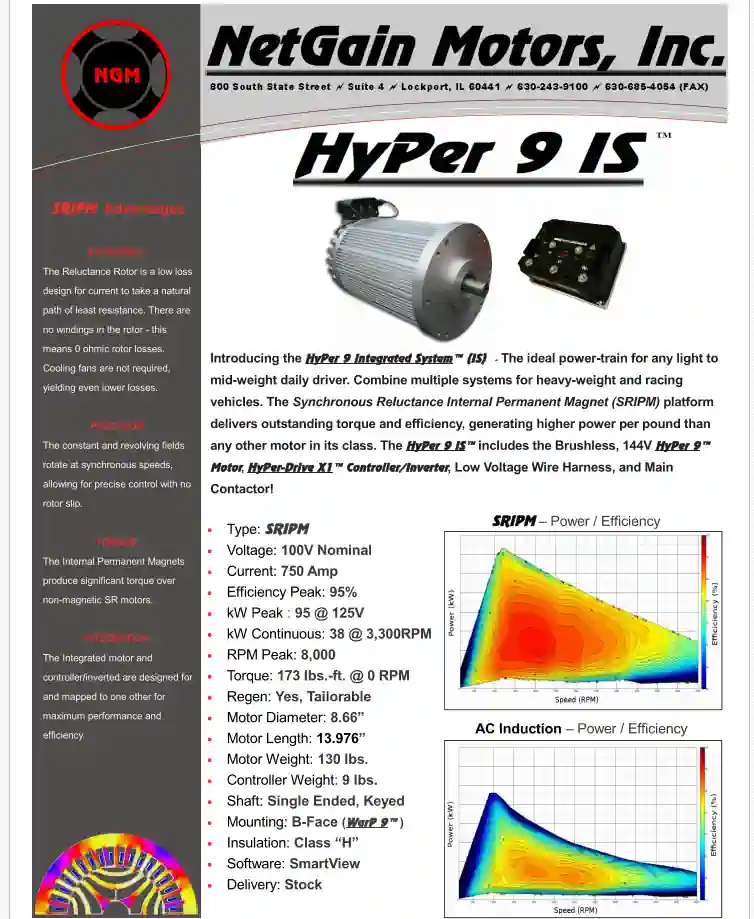

HyPer 9™ System

The HyPer 9 Integrated System ™ is the ideal power-train for any light to mid-weight daily driver. Combine multiple systems for heavy-weight and racing vehicles. Its Synchronous Reluctance Internal Permanent Magnet (SRIPM) platform delivers outstanding torque and efficiency, generating higher power per pound than any other motor in its class.

The HyPer 9 IS™ includes the 100V brushless HyPer 9™ Motor, HyPer-Drive X1™ Controller/Inverter, SmartView Programming Software, Low Voltage Wire Harness Kit, and Main Contactor.

Delivery Time: From Stock

Unique advantages of HyPer Systems™

  • Industry Leading 3 Phase SRIPM Motor and Controller/Inverter
  • DC supply voltage from 62V to 130V, and current up to 750A Peak
  • Peak Power - 95kW (127HP)
  • Brushless Motor
  • Cageless Rotor - Higher efficiency, no heat from wasted energy
  • Synchronous Fields - Full torque is harnessed without Rotor Slip
  • Up to 95% Efficiency!
  • Up to 50% higher torque than similar sized AC Induction motors running at the same power levels!
  • Astounding performance in field weakening area with +50% power up to 5x nominal speed
  • Ultra compact controller
  • Field Oriented Control (FOC) algorithm optimized specifically for Synchronous Reluctance Internal Permanent Magnet motors
  • Fully customizable controller I/O
  • Extensive program customization from PC with Smartview Software
  • Robust and Reliable

Continuous Performance Data:

Continuous Performance

Engineering Drawings:

Engineering Drawing
HyPer 9
Engineering Drawing
HyPer-Drive

The Essentials:

  • Shaft - 1.125" with .250" Keyway
  • Mounting - B Face
  • Ideal Voltage - 80V-120V Nominal
  • Current - 750Arms
  • Peak Eff. - 95%
  • S2-2min Power - 95kW
  • S2-60min Power - 38kW @ 3,300RPM
  • Diameter - 8.66"
  • Length - 13.97"
  • Motor Weight - 130lb
  • Inverter Weight - 9lbs
  • Insulation -class H
  • Software - Dana/TM4 SmartView

Back to Top

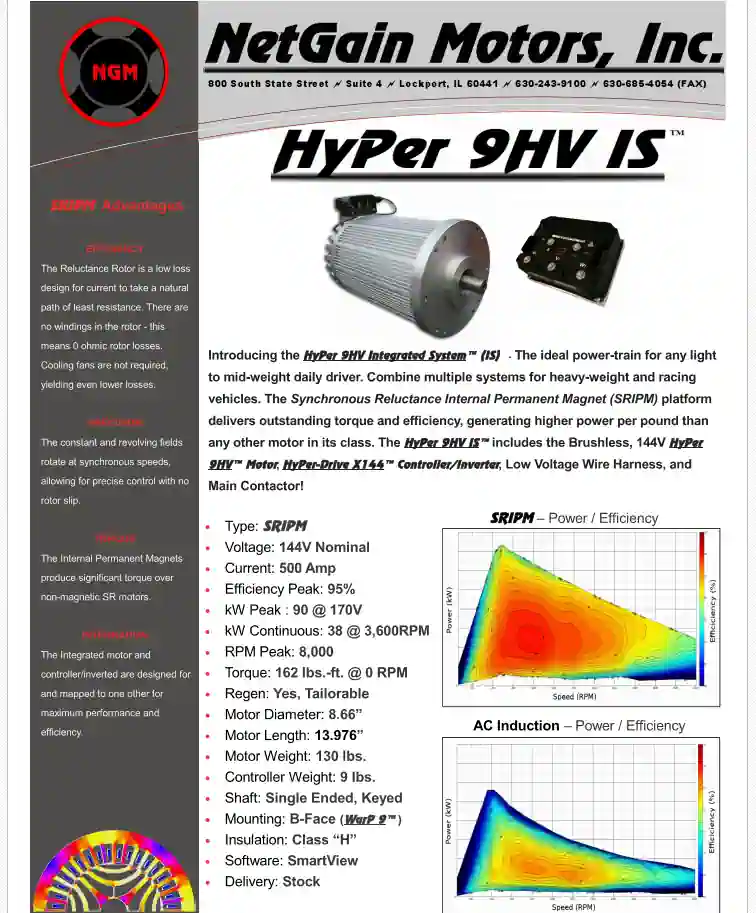

HyPer 9HV™ System

The HyPer 9HV Integrated System ™ is the ideal power-train for any light to mid-weight daily driver. Combine multiple systems for heavy-weight and racing vehicles. Its Synchronous Reluctance Internal Permanent Magnet (SRIPM) platform delivers outstanding torque and efficiency, generating higher power per pound than any other motor in its class.

The HyPer 9HV IS™ includes the 144V brushless HyPer 9HV™ Motor, HyPer-Drive X144™ Controller/Inverter, SmartView Programming Software, Low Voltage Wire Harness Kit, and Main Contactor.

Delivery Time: From Stock

Unique advantages of HyPer HV Systems™

  • Industry Leading 3 Phase SRIPM Motor and Controller/Inverter
  • DC supply voltage from 90V to 180V, and current up to 500A Peak
  • Peak Power - 95kW (127HP)
  • Brushless Motor
  • Cageless Rotor - Higher efficiency, no heat from wasted energy
  • Synchronous Fields - Full torque is harnessed without Rotor Slip
  • Up to 95% Efficiency!
  • Up to 50% higher torque than similar sized AC Induction motors running at the same power levels!
  • Astounding performance in field weakening area with +50% power up to 5x nominal speed
  • Ultra compact controller
  • Field Oriented Control (FOC) algorithm optimized specifically for Synchronous Reluctance Internal Permanent Magnet motors
  • Fully customizable controller I/O
  • Extensive program customization from PC with Smartview Software
  • Robust and Reliable

Continuous Performance Data:

Continuous Performance

Engineering Drawings:

Engineering Drawing
HyPer 9HV
Engineering Drawing
HyPer-Drive

The Essentials:

  • Shaft - 1.125" with .250" Keyway
  • Mounting - B Face
  • Ideal Voltage - 80V-120V Nominal
  • Current - 500Arms
  • Peak Eff. - 95%
  • S2-2min Power - 95kW
  • S2-60min Power - 39kW @ 3,300RPM
  • Diameter - 8.66"
  • Length - 13.97"
  • Motor Weight - 130lb
  • Inverter Weight - 9lbs
  • Insulation -class H
  • Software - Dana/TM4 SmartView

Back to Top

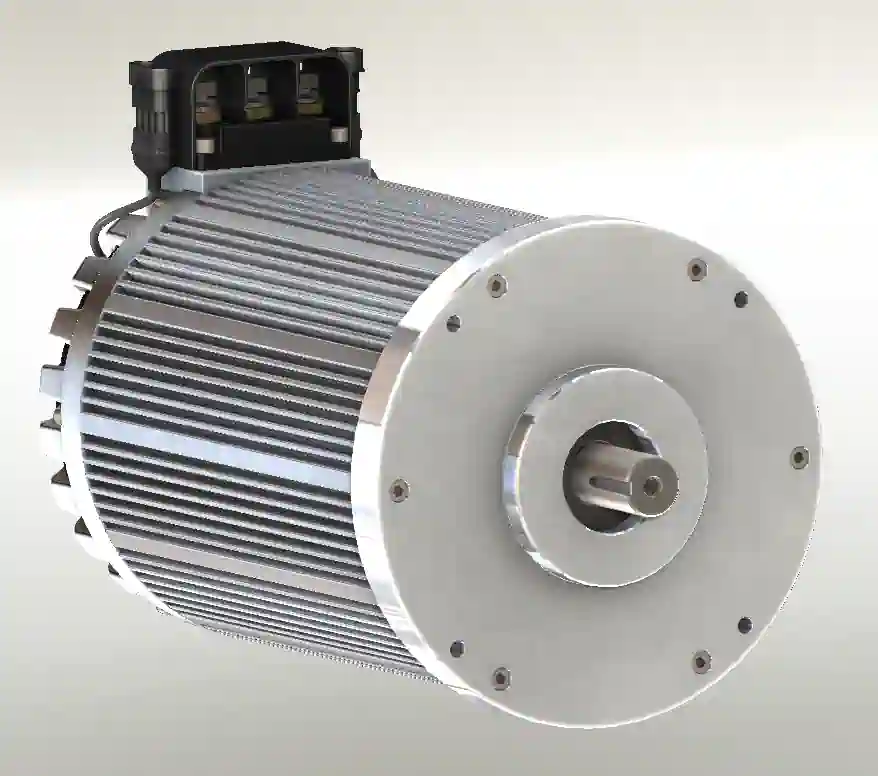

HyPer 9™ Motor

This motor has an 8.66" diameter and weighs 130 lbs. It is a Synchronous Reluctance Internal Permanent Magnet motor that produces 173 lb/ft peak torque. The HyPer 9™ Motor combines the torque-producing forces of permanent magnets with the highly efficient and cost-effective synchronous-reluctance design.

Delivery Time: From Stock

Unique advantages of HyPer Motors™

  • Brushless Motor
  • Peak Power - 95kW (127HP)
  • Peak Torque - 173lb/ft
  • Cageless Rotor - higher efficiency, no rotor heat
  • No Rotor Slip
  • Speeds up to 8,000 RPM
  • Up to 95% efficiency
  • Up to 50% higher torque than similar-sized AC induction motors at the same power
  • +50% power in field-weakening up to 5x nominal speed
  • IP54 Protection
  • Robust and reliable

HyPer 9™ and HyPer 9D™ drive-end shafts are 1.125" with a 1/4" keyway.
The HyPer 9D™ encoder-end shaft is also 1.125" with a 1/4" keyway.

Peak Performance Data:

72V Peak Performance 84V Peak Performance 96V Peak Performance 108V Peak Performance 120V Peak Performance 132V Peak Performance

Continuous Performance Data:

Continuous Performance

Engineering Drawings:

Engineering Drawing
HyPer 9
Engineering Drawing
HyPer 9D

The Essentials:

  • Shaft - 1.125" with .250" keyway
  • Mounting - B Face
  • Ideal Voltage - 80-120 V nominal
  • Current - 750 Arms
  • Peak Eff. - 95 %
  • S2-2 min Power - 95 kW
  • S2-60 min Power - 38 kW @ 3,300 RPM
  • Peak Torque - 173 lb/ft
  • Diameter - 8.66"
  • Length - 13.97"
  • Motor Weight - 130 lb
  • Insulation - Class H
  • Software - Dana/TM4 SmartView
HyPer 9HV™ Motor

This motor has an 8.66" diameter and weighs 130 lbs. It is a Synchronous Reluctance Internal Permanent Magnet motor that produces 163 lb/ft peak torque. The HyPer 9™ Motor combines the torque-producing forces of permanent magnets with the highly efficient and cost-effective synchronous-reluctance design.

Delivery Time: From Stock

Unique advantages of HyPer HV Motors™

  • Brushless Motor
  • Peak Power - 95kW (127HP)
  • Peak Torque - 163lb/ft
  • Cageless Rotor - higher efficiency, no rotor heat
  • No Rotor Slip
  • Speeds up to 8,000 RPM
  • Up to 95% efficiency
  • Up to 50% higher torque than similar-sized AC induction motors at the same power
  • +50% power in field-weakening up to 5x nominal speed
  • IP54 Protection
  • Robust and reliable

HyPer 9HV™ and HyPer 9DHV™ drive-end shafts are 1.125" with a 1/4" keyway.
The HyPer 9DHV™ encoder-end shaft is also 1.125" with a 1/4" keyway.

Peak Performance Data:

120V Peak Performance 132V Peak Performance 144V Peak Performance 156V Peak Performance

Continuous Performance Data:

Continuous Performance

Engineering Drawings:

Engineering Drawing
Hyper 9HV
Engineering Drawing
HyPer 9DHV

The Essentials:

  • Shaft - 1.125" with .250" keyway
  • Mounting - B Face
  • Ideal Voltage - 144 V nominal
  • Current - 500 Arms
  • Peak Eff. - 95 %
  • S2-2 min Power - 95 kW
  • S2-60 min Power - 39 kW @ 3,300 RPM
  • Peak Torque - 163 lb/ft
  • Diameter - 8.66"
  • Length - 13.97"
  • Motor Weight - 130 lb
  • Insulation - Class H
  • Software - Dana/TM4 SmartView
