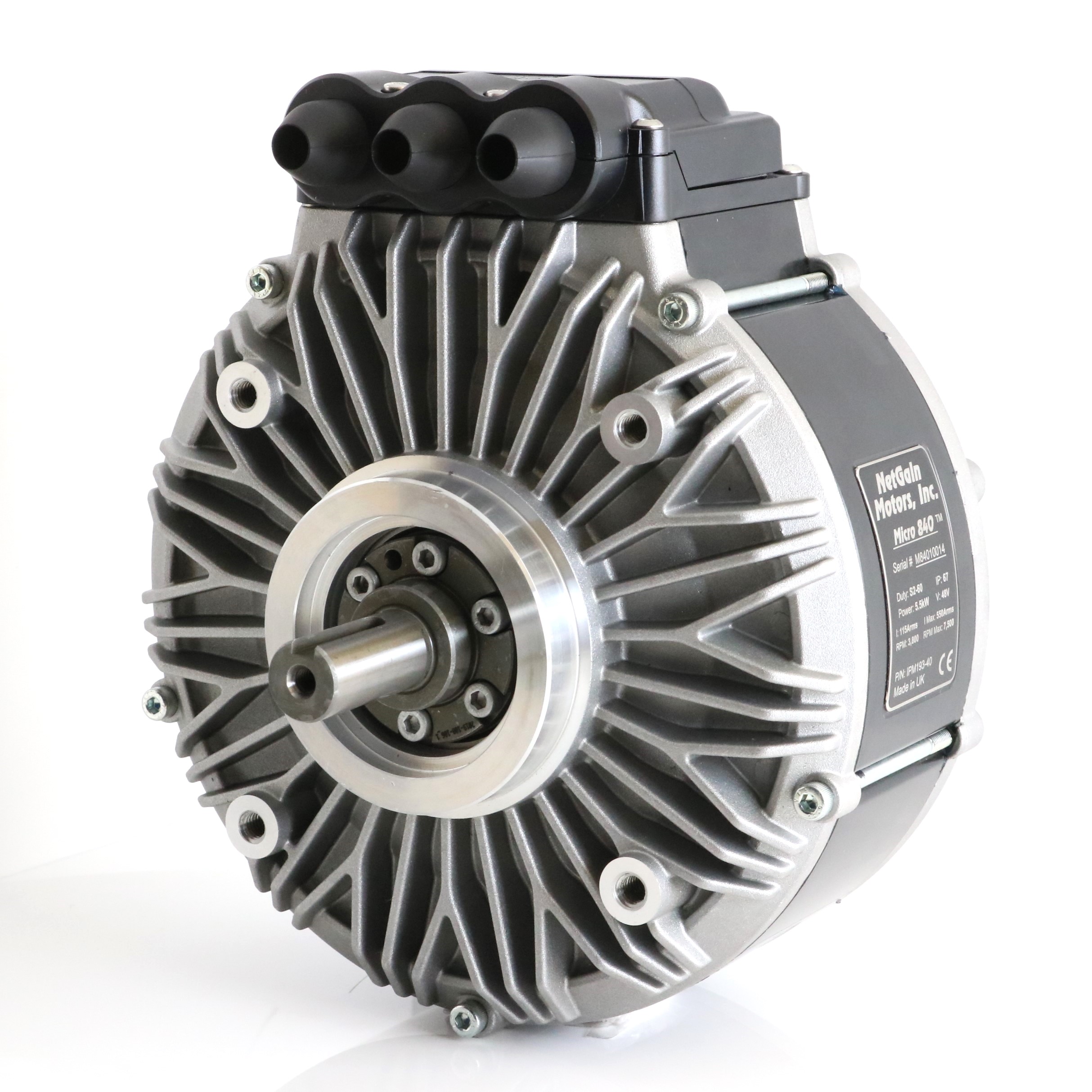

Distinguished by its high compression potted stator, the Micro 840™ ensures unparalleled reliability and thermal transfer. The independent IP rating of IP65 can be increased to IP67 with an optional shaft seal, or to IP69k when mated to a sealed gearbox. All Micro 840 Systems™ include the 80V brushless Micro 840™ Motor, HyPer-Drive™ Controller/Inverter, SmartView Programming Software, Low Voltage Wire Harness Kit, and Main Contactor. This system has many unique features that set it apart from any other EV solution on the market.

Unique advantages of Micro Motors:

• Brushless IPM Motor.
• Flexible range of interface options for simplified application integration.
• DC supply voltage from 24V to 130V, and current up to 600Arms Peak.
• "Bulletproof" high compression potted stator - A cutting-edge solution to vibration, ingress, and thermal gap concerns.
• IP65 with or without optional terminal enclosure kit.
• IP67 or IP69K is achieved through gearbox coupling or optional shaft seal.
• Synchronous Fields - Full torque is harnessed without Rotor Slip.
• Up to 95% Efficiency!

Pair with any HyPer-Drive™ Controller/Inverter for:

• Field Oriented Control (FOC) algorithm optimized specifically for IPM motors.
• Fully customizable controller I/O.
• Extensive program customization from PC with Smartview Software.
• A robust, reliable, and proven system.

The Essentials:

• Ideal Voltage - 48V to 120V Nominal
• Current - 250Arms to 550Arms
• Peak Eff. - 95%
• S2-5min Power - 13.4kW to 22.5kW
• S2-60min Power - 5.5kW
• Peak Torque - 46lb/ft
• Diameter - 8.19
• Length - 4.73
• Weight - 25lb

Currently available interface options:

• M841 - 1.125" shaft with .250" keyway
• M842 - 24mm shaft with 8mm keyway
• M843 - 13T spline shaft with SAE-B adapter plate

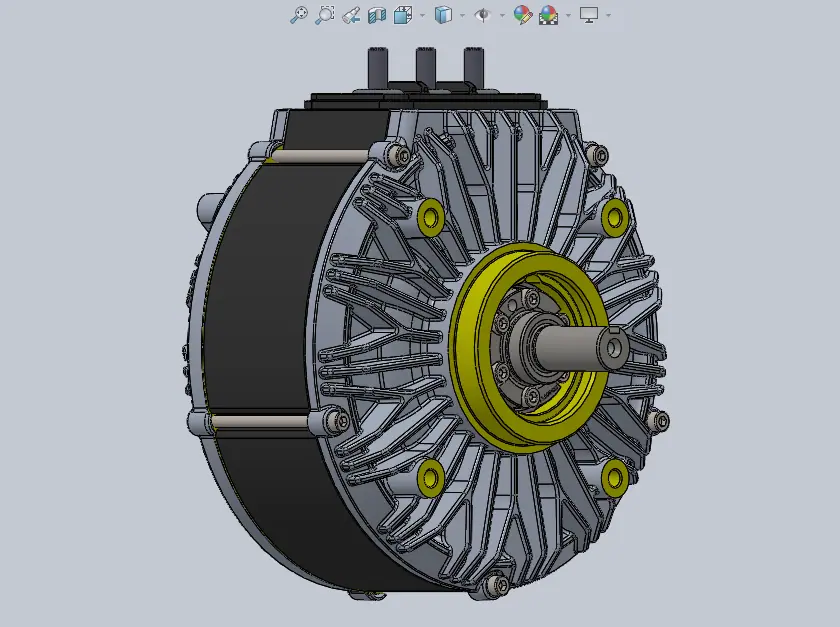

• M844 - 19mm shaft with 6mm keyway
• M845 - 9T spline shaft with SAE-A adapter plate

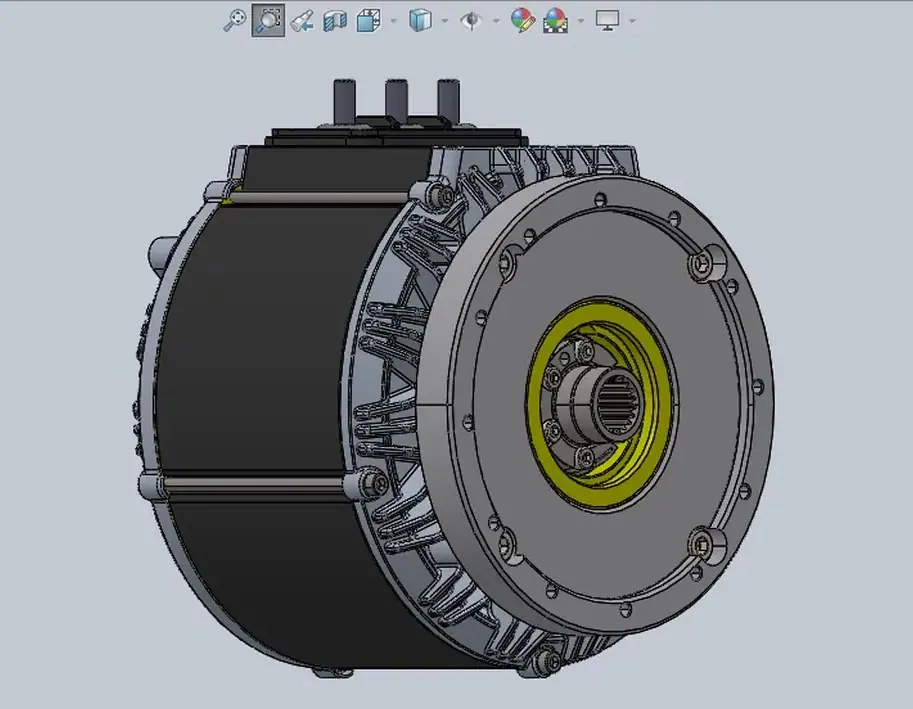

• M846 - 19T spline shaft with H12/24E/30E-Axle Adapter plate

Suggested HyPer-Drive™ Inverter pairing:

• X4860 - Maximum Torque | Standard Speed
• X125 - Standard Torque | Maximum Speed
• X1 - Maximum Torque | Maximum speed

Distinguished by its high compression potted stator, the Micro 880™ ensures unparalleled reliability and thermal transfer. The independent IP rating of IP65 can be increased to IP67 with an optional shaft seal, or to IP69k when mated to a sealed gearbox. All Micro 880 Systems™ include the 80V brushless Micro 880™ Motor, HyPer-Drive™ Controller/Inverter, SmartView Programming Software, Low Voltage Wire Harness Kit, and Main Contactor.

Unique advantages of Micro Motors:

• Brushless IPM Motor
• Flexible range of interface options for simplified application integration.
• DC supply voltage from 24V to 180V, and current up to 900Arms Peak.
• "Bulletproof" high compression potted stator - A cutting-edge solution to vibration, ingress, and thermal gap concerns.
• IP65 with or without optional terminal enclosure kit.
• IP67 or IP69K is achieved through gearbox coupling or optional shaft seal.
• Synchronous Fields - Full torque is harnessed without Rotor Slip.
• Up to 95% Efficiency!

Pair with any HyPer-Drive™ Controller/Inverter for:

• Field Oriented Control (FOC) algorithm optimized specifically for IPM motors.
• Fully customizable controller I/O.
• Extensive program customization from PC with Smartview Software.
• A robust, reliable, and proven system.

The Essentials:

• Ideal Voltage - 48V to 120V Nominal
• Current - 250Arms to 900Arms
• Peak Eff. - 95%
• S2-5min Power - 32kW
• S2-60min Power - 10kW
• Peak Torque - 103lb/ft
• Diameter - 8.19
• Length - 6.30
• Weight - 40lb

Currently available interface options:

• M881 - 1.125" shaft with .250" keyway
• M882 - 24mm shaft with 8mm keyway
• M883 - 13T spline shaft with SAE-B adapter plate
• M884 - 19mm shaft with 6mm keyway
• M885 - 9T spline shaft with SAE-A adapter plate
• M886 - 19T spline shaft with H12/24E/30E-Axle Adapter plate

Suggested HyPer-Drive™ Inverter pairing:

• X4860 - High Torque | Low Speed
• X48100 - Maximum Torque | Low Speed
• X125 - Low Torque | High Speed
• X1 - High Torque | High speed
• X144 - High Torque | Maximum Speed

The Micro 880MV™ is identical to the Micro 880™ in every way, apart from its windings which produce similar torque while drawing 30% less phase current.

Compare the Micro 880MV™ 80V 650Arms performance curves to the Micro 880™ 80V 900Arms performance curves.

Unique advantages of Micro 880MV Motors:

• Brushless IPM Motor with High-Torque / Medium-Voltage Winding
• Higher torque per amp output for lower current draw and cooler operation.
• Flexible range of interface options for simplified application integration.
• DC supply voltage from 80V to 144V nominal, and current up to 650Arms Peak.
• "Bulletproof" high compression potted stator - A cutting-edge solution to vibration, ingress, and thermal gap concerns.
• IP65 with or without optional terminal enclosure kit.
• IP67 or IP69K is achieved through gearbox coupling or optional shaft seal.
• Synchronous Fields - Full torque is harnessed without Rotor Slip.
• Up to 95% Efficiency!

Pair with any HyPer-Drive™ Controller/Inverter for:

• Field Oriented Control (FOC) algorithm optimized specifically for IPM motors.
• Fully customizable controller I/O.
• Extensive program customization from PC with Smartview Software.
• A robust, reliable, and proven system.

The Essentials:

• Ideal Voltage - 80V to 144V Nominal
• Current - 250Arms to 650Arms
• Peak Eff. - 95%
• S2-5min Power - 32kW
• S2-60min Power - 10kW
• Peak Torque - 98lb/ft
• Diameter - 8.19
• Length - 6.30
• Weight - 40lb

Currently available interface options:

• M881MV - 1.125" shaft with .250" keyway
• M882MV - 24mm shaft with 8mm keyway
• M883MV - 13T spline shaft with SAE-B adapter plate
• M884MV - 19mm shaft with 6mm keyway
• M885MV - 9T spline shaft with SAE-A adapter plate
• M886MV - 19T spline shaft with H12/24E/30E-Axle Adapter plate

Suggested HyPer-Drive™ Inverter pairing:

• X4860 - High Torque | Low Speed
• X125 - Low Torque | High Speed
• X1 - Maximum Torque | High Speed
• X144 - Standard Torque | Maximum Speed
